EK-FB KIT ASUS R5-E10 - Nickel

EAN: 3831109821602

EK-FB KIT ASUS R5-E10 is a complete liquid cooling solution for ASUS ROG Rampage V Edition 10 motherboard.

$ 130.99

Only few pieces!

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

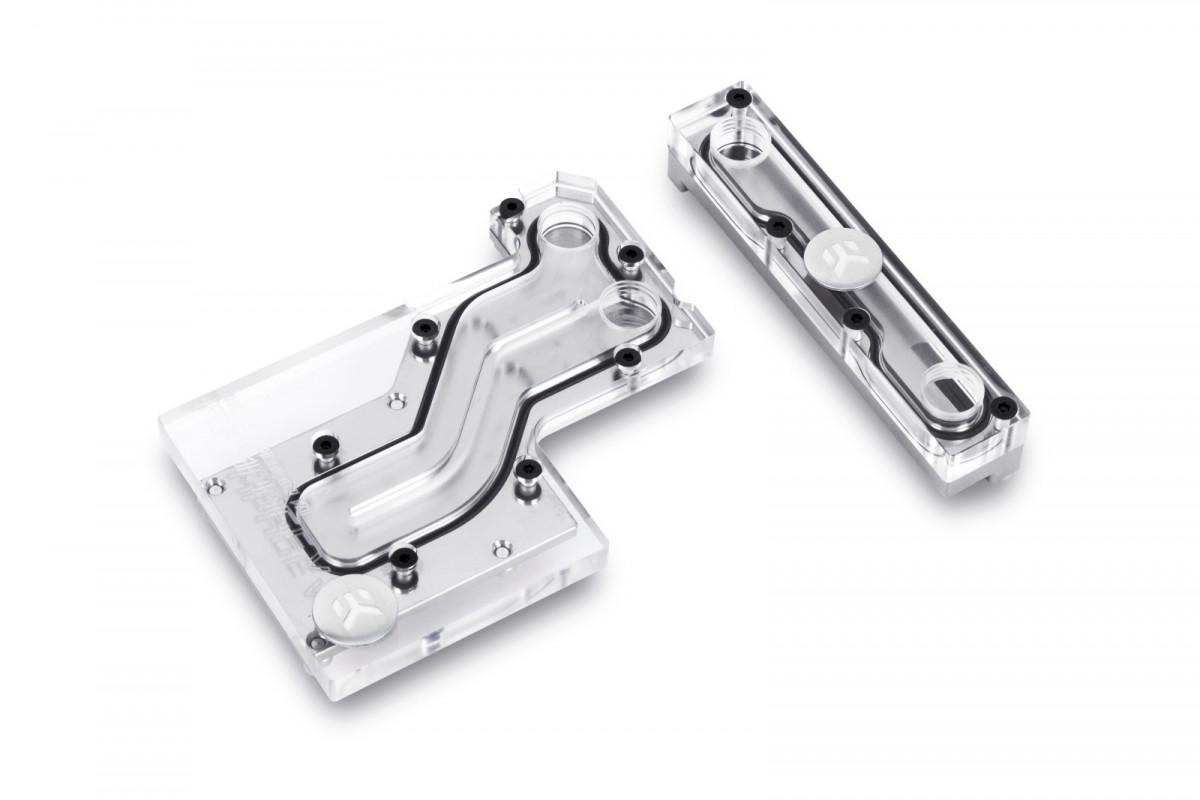

EK-FB KIT ASUS R5E-E10 is a complete liquid cooling solution for ASUS ROG Rampage V Edition 10 motherboard consisting of two separate water blocks. The water blocks directly cool Intel X99 Express southbridge (PCH) chip and power regulation (VRM / MOSFETs) module. Please note this water block cools exactly as much heat generating components as ASUS factory cooling solution. Both blocks utilize a very high flow design, allowing you to use it in loops with weaker water pumps.



The base of both water blocks is made of nickel plated electrolytic copper while the top is made of quality acrylic material. The sealing is performed by quality rubber gaskets. Nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation.

A maximum diameter of barbs/fittings on SB part of the water block kit must be 22.2mm (EK-ACF Fitting 10/16mm are the largest fittings that you can use) in order to allow the installation of the graphics card mounted with EK-FC series backplate in the first PCIe x16 slot!

Enclosed:
- 2 water blocks (MOSFET & SB)
- Mounting mechanism
- Thermal pads
- Thermal grease EK-TIM Ectotherm

Made in Slovenia - Europe!

PLEASE NOTE:

  • Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
  • A maximum diameter of barbs/fittings on SB part of the water block kit must be 22.2mm (EK-ACF Fitting 10/16mm are the largest fittings that you can use) in order to allow the installation of the graphics card mounted with EK-FC series backplate in the first PCIe x16 slot!
  • Four fittings are needed for this water block to operate properly.
  • Factory backplate with RGB functionality is compatible with this kit.
  • ASUS ROG Rampage V Edition 10 I/O Shield is not compatible with this kit.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
