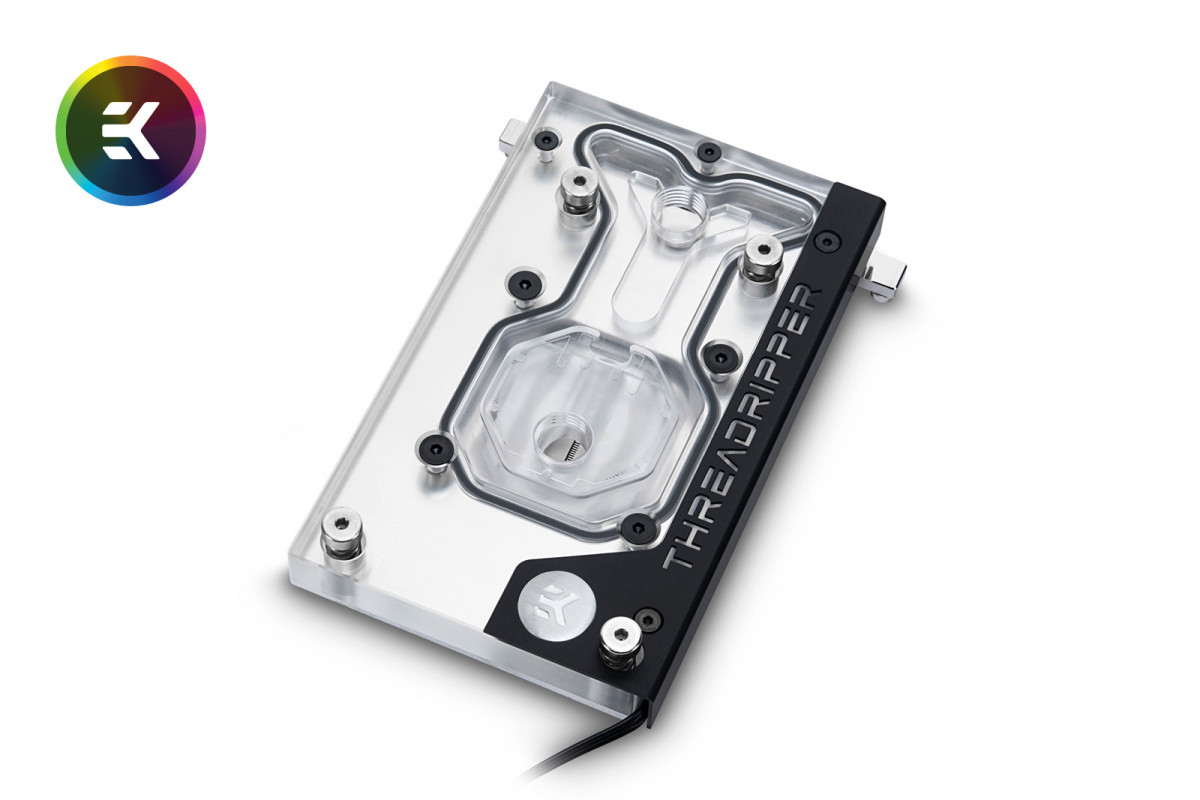

EK-FB GA X399 GAMING RGB Monoblock is a complete all-in-one (CPU and motherboard) liquid cooling solution for two GIGABYTE® AMD® X399 Chipset based motherboards that support AMD Socket TR4 AMD Ryzen™ Threadripper™ processors. This monoblock is compatible with the following GIGABYTE® motherboards:
- GIGABYTE X399 Aorus Gaming 7 (rev.1.0)
- GIGABYTE X399 Designare EX (rev.1.0)
Designed and engineered in cooperation with GIGABYTE®, this monoblock uses a completely new cooling engine that ensures excellent CPU cooling performance. This water block directly cools the AMD® Socket TR4 type CPU, as well as the power regulation module (VRM). Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks.
This X399 platform based monoblock features a redesigned cold plate with a fin area that covers most of the Ryzen™ Threadripper™ IHS surface. The design also ensures that the monoblock cold plate is covering the entire Ryzen™ Threadripper™ processor IHS, thus enabling better thermal transfer. The base of the monoblock is made of nickel-plated electrolytic copper while the top is made of quality acrylic glass material. The main nickel plated mounting screws and brass screw-in standoffs are pre-installed so that the installation process is quick and easy.
A standard 4-pin 12V RGB LED strip is installed in the monoblock that connects to the motherboard's 4-pin LED header or it can be connected to any other standard 12V 4-pin LED controller. The LED strip cover can easily be removed for adjusting the cable orientation or replacing the ordinary LED strip with a Digital LED strip or any other custom solution as well! The enclosed Digital RGB LED strip is compatible only with the dedicated 5-pin digital LED motherboard header. GIGABYTE® X399 series motherboards boast the most advanced LED system in the market today and with the GIGABYTE RGB Fusion App, users can individually address color to each LED on the monoblocks integrated Digital LED strip.
Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation.
The enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the water block. For the CPU please use the enclosed (electrically non-conductive) high-performance thermal grease Thermal Grizzly Hydronaut. The additional passive heatsink is used for the VRM and network chip components placed between the I/O shield and the memory DIMM slots.
Enclosed:
- EK-FB GA X399 GAMING RGB Monoblock
- Passive heatsink
- 3-pin 5V RGB D-LED strip
- Mounting mechanism
- Thermal grease: Thermal Grizzly Hydronaut 1g
- Thermal pads
CPU socket compatibility:
- AMD Socket TR4 for listed motherboards
Made in Slovenia - Europe!
