EK-FB ASUS R5E Monoblock - Nickel (Original CSQ)

Product EAN: 3831109821374
End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made in the EU

Details

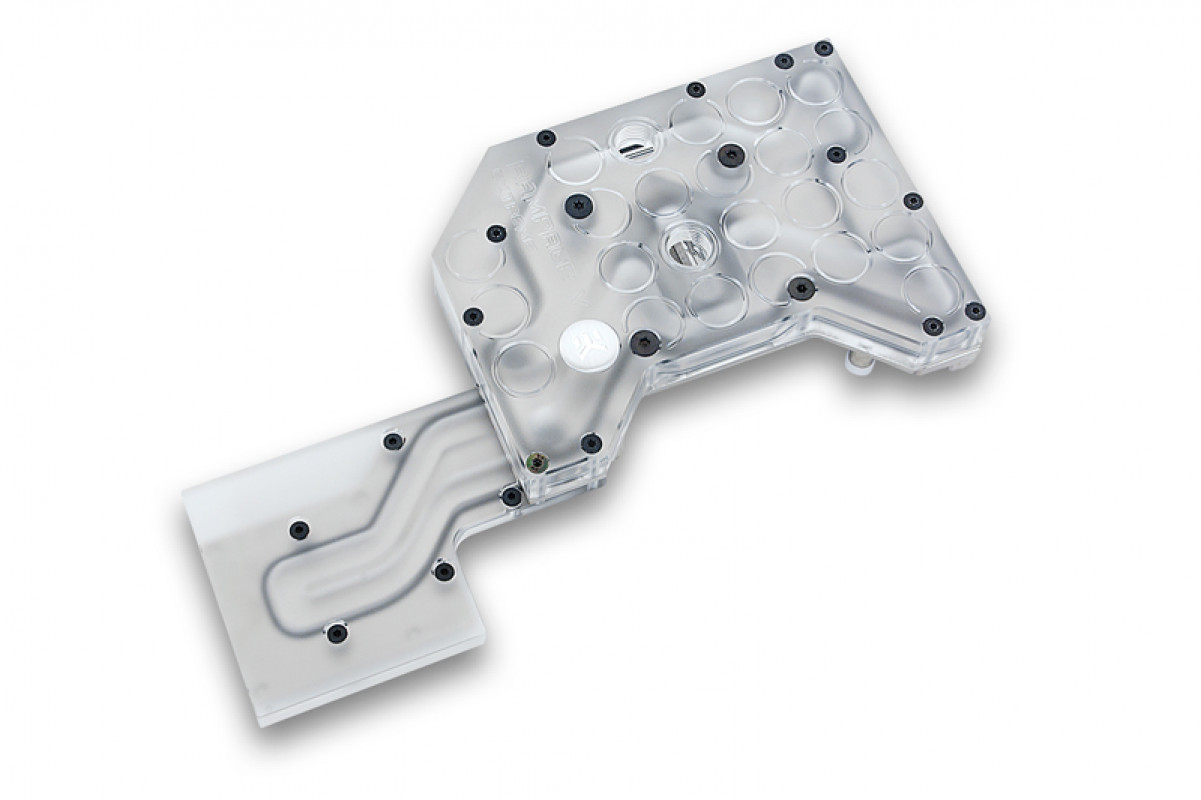

EK-FB ASUS R5E Monoblock water block is a complete all-in-one (CPU and motherboard) liquid cooling solution for Intel LGA-2011-V3 socket Haswell-E CPU and ASUS Rampage V Extreme motherboard.

This water block uses award winning EK-Supremacy cooling engine to ensure best possible CPU cooling. The water blocks directly cools Intel LGA-2011-V3 socket type CPU, Intel X99 Express southbridge (PCH) and power regulation (VRM / MOSFETs) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with systems using weaker water pumps.

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality satin finish acrylic glass material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M3x5 DIN7985, M3x8 DIN7991 and M4x8 DIN7984 screws and PVC washers and utilizes the factory provided MOSFET backplate. The nickel plated brass screw-in standoffs are pre-installed and allow for easy installation.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the CPU and southbridge (PCH) chip please use the enclosed electrically non-conductive thermal grease EK-TIM Ectotherm.

Enclosed:
- water block
- mounting mechanism
- thermal grease Gelid GC-Extreme (1.5g)
- thermal pads

Fittings are not enclosed! Two fittings are needed for proper operation.

Made in Slovenia - Europe!

PLEASE NOTE:
- Fittings are not included! Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

PLEASE NOTE:

  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Sockets Intel
