EK-Classic DP Front PC-O11D D-RGB + SPC PWM

Product EAN:
3831109821862

The EK-Classic Distroplate Front PC-O11D SPC PWM D-RGB - Plexi, is specifically designed to provide a comprehensive water cooling solution for the most popular water cooling case on the market, the Lian Li PC-O11D. It embodies the EK-Classic ideals of budget-conscious SPC pump and simplistic design, offering an affordable solution for incredible aesthetics.


Compatible only with Lian Li PC-O11D!


This product is a part of the EK Classic Product Line that is characterized by minimalistic and clean design while maintaining the class-leading performance. Less talk, more cooling!


For more information, check out: www.ekwb.com/classic

$199.99

In stock

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

The EK-Classic Distroplate Front PC-O11D SPC PWM D-RGB - Plexi, is specifically designed to provide a comprehensive water cooling solution for the most popular water cooling case on the market, the Lian Li PC-O11D. It embodies the EK-Classic ideals of budget-conscious SPC pump and simplistic design, offering an affordable solution for incredible aesthetics.

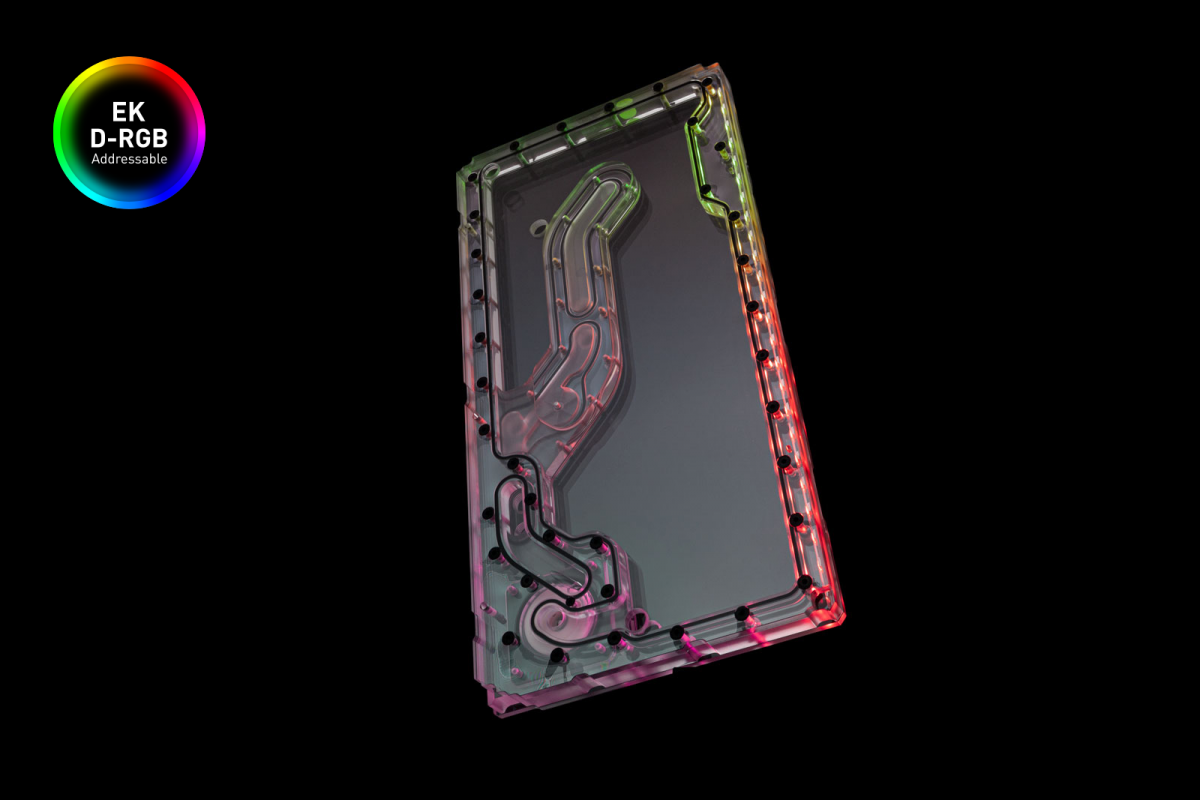

EK-Classic Distroplate Front PC-O11D SPC PWM D-RGB - Plexi

This front-mounted distribution plate simplifies the water cooling build process for beginner PC builders who targeting the use of hard tubing. Using this distro plate requires little to no bending with straight runs to the waterway. It offers an all in one solution that includes a pump and reservoir while being fitted with multiple industry-standard G1/4" threaded inlet and outlets. It is able to support one CPU and up to two GPUs and a top-mounted radiator.

It is mounted on the front of the Lian Li PC-O11D case revealing the awesome aesthetics head-on. The built-in Addressable D-RGB LED strip connects to the motherboard 5V Addressable D-RGB header and it is compatible with all popular RGB sync technologies from all major motherboard manufacturers.

EK RGB All

True to the EK Classic ideals, this water distribution plate comes with a reliable value-oriented SPC liquid cooling pump that has PWM speed control.

Technical specifications:

- Motor: Electronically commuted motor
- Rated voltage: 12V DC
- Power consumption: 6W
- Maximum pressure head: 2.2m
- Maximum flow rate: 250 L/h
- Maximum liquid temperature: 50°C
- Materials: PPS-GF30, EPDM O-rings, graphite
- Power connector: 4-Pin PWM FAN connector
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Classic Distroplate Front PC-O11D SPC PWM D-RGB - Plexi
- PWM Extender Cable 50cm
- 1x Allen key 2mm
- 1x Allen key 2,5mm
- 1x Allen key 6,0mm
- 2x Screw M3x8 7991DIN
- 3x Screw M4x20 7991DIN
- Screw M4x20 7991DIN

Made in Slovenia - EU!

PLEASE NOTE:

  • Compatible only with Lian Li PC-O11D (not compatible with XL version).
  • The SPC pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
  • This product is NOT compatible with DDC Heatsink Housing!
  • The distribution plate is not compatible with DDC style pumps!
  • The Lian Li PC-O11D is only for showcase and its not delivered with the product

Additional Info

Threads G1/4
