EK-Annihilator Pro - Narrow ILM

The EK-Annihilator Pro Narrow ILM is a dedicated server grade water block with 1U chassis compatibility which was specifically developed for LGA 3647 (Socket P) Intel® processors. The core of the new CPU water block was further refined to manage the growing heat dissipation of new processors and to further upgrade connectivity options for server rack requirements. The new server/workstation-grade CPU block is 1U chassis type compatible for use with server racks.

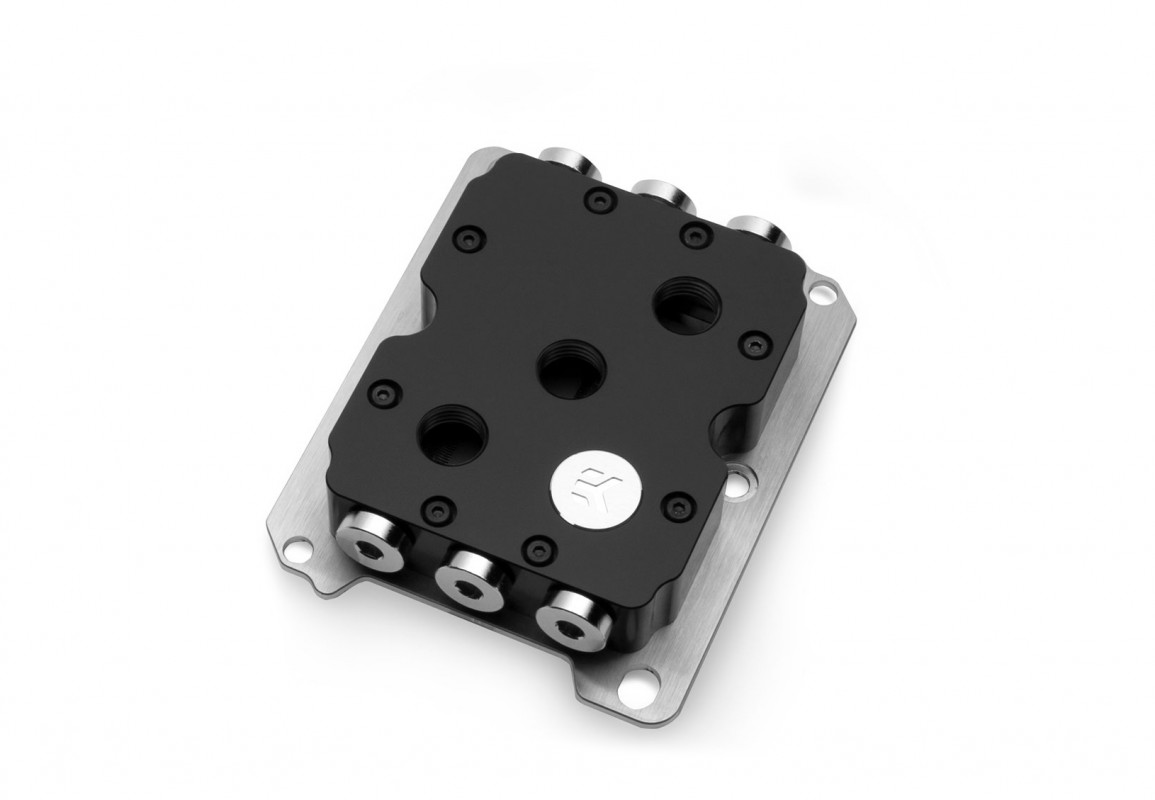

The EK-Annihilator Pro Narrow ILM water block features a total of 9 ports, which allow for versatile connectivity options. Three ports located on the top are standard G1/4″ threaded and are intended for workstations and taller server racks, while the 6 side ports, for low profile usage, are G1/8″ threaded.

This enterprise cooling solution is built for performance, reliability, serviceability and no compromises in mind. The EK-Annihilator PRO water block meets these demands with top thermal performance, and unparalleled connectivity making it the perfect choice for liquid cooling high-density computing systems.

EK-Annihilator Pro Narrow ILM water block features a precisely machined copper base (‘cold plate’) which is made from purest copper available on the market and is treated with nickel electroplating. The top is made from CNC machined from thick and sturdy black POM Acetal and the CPU square ILM and narrow ILM hold-down brackets are made of laser cut stainless steel.

Enclosed:

• EK-Annihilator Pro Narrow ILM CPU water block
• Necessary mounting screws, nuts, and washers
• 3x EK plug G1/4”
• 6x EK plug G1/8”
• 2x HFB barb fitting 6mm
• 2x Barb clamp 6mm
• 6mm Allen key
• 5mm Allen key
• 4mm Allen key
• 3/16mm Allen key
• Thermal grease (1g)

Technical Specifications:

• Dimensions (L x H x W): 108 x 80 x 24 mm
• Materials: Nickel-plated copper, POM, stainless steel
• Mass (kg): 0.477
• Ports: 3 x G1/4” and 6 x G1/8”
• Mounting method: 4 mm Imbus/Allen key
• Working pressure: 2500 Pa
• Maximal working pressure: 30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
• Operating temperature range: 5 – 60 °C

Compatibility:

• LGA 3647 (Socket P) Narrow ILM

Made in Slovenia - EU!
