EK-AF Angled 45° G1/4 Black Nickel

Product EAN: 3831109845240
End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made in the EU

Details

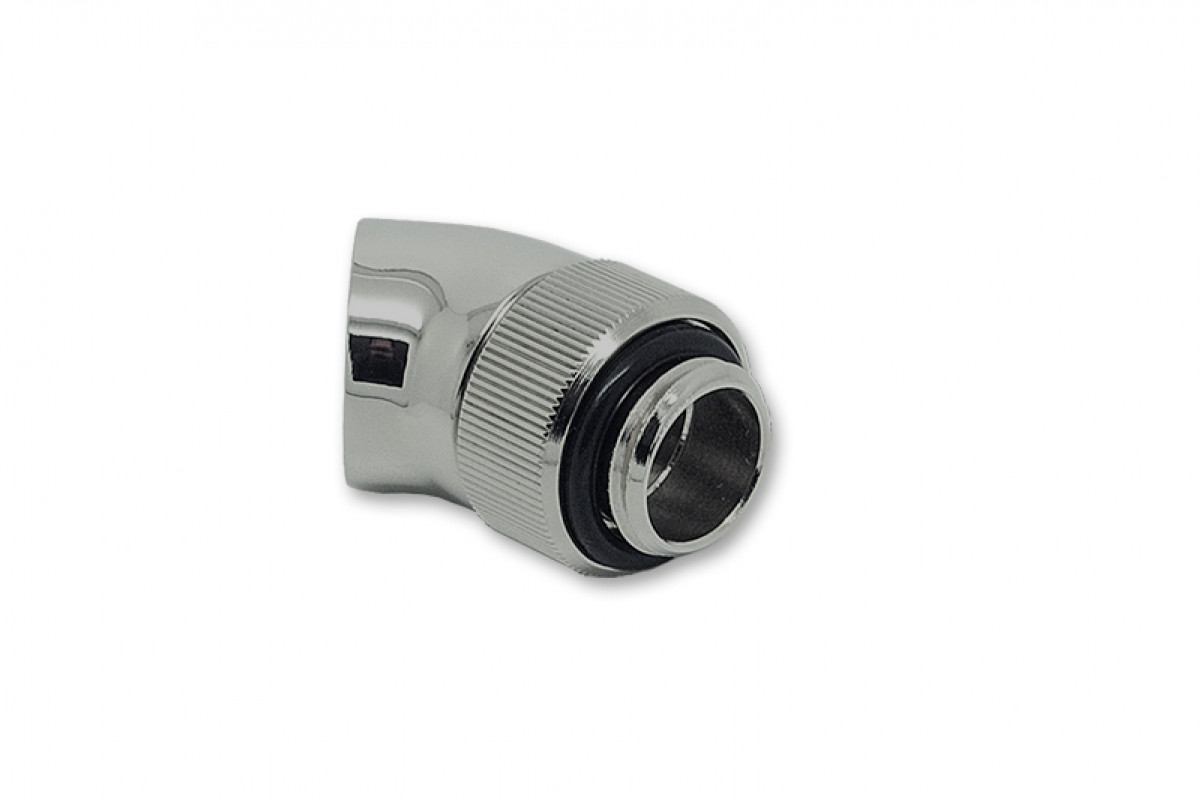

EK-AF (Adapter Fitting) Revolvable angled adaptor (45°)  with G1/4" threads.

Adapter allows connection of  fitting with G1/4" threads to extend tubing possibilites in your water cooled system.

Technical specifications:
- Material: made of nickel plated brass
- Threads:
   * G1/4" BSP; 4,5mm male thread lenght
   * G1/4" BSP, 6mm female thread lenght
- Outer diameter of a knurled part: 19,8mm
- Installed height: 29mm
- Sealed with high quality NBR oring.

ROHS compliant!

PLEASE NOTE:

  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
  • All AF Angled adapters are hand polished and rounded, therefore minor geometrical imperfections are to be expected. This fact does not fall under warranty terms and RMA rights!
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Threads G1/4
