Details

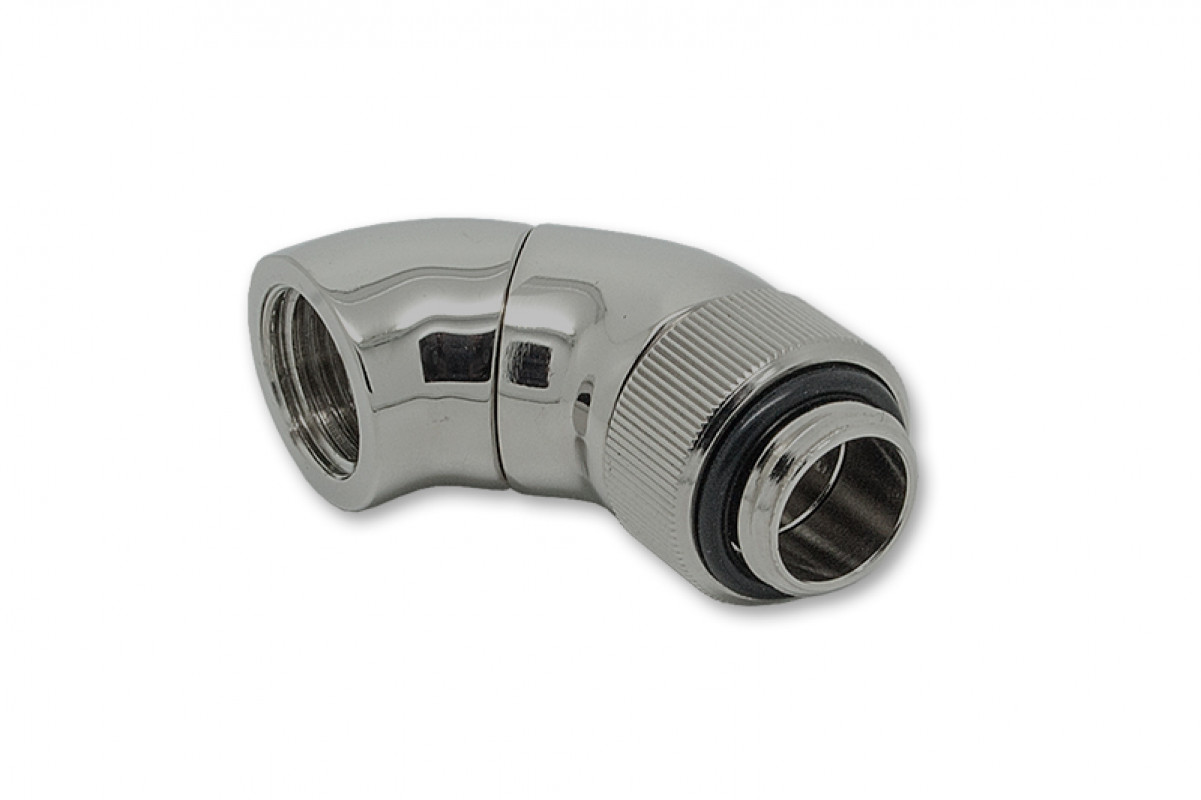

EK-AF (Adapter Fitting) Revolvable angled adaptor (2×45°) with G1/4" threads.
Adapter allows connection of fitting with G1/4" threads to extend tubing possibilites in your water cooled system.
Technical specifications:
- Material: made of nickel plated brass
- Threads:
* G1/4" BSP; 4,5mm male thread lenght
* G1/4" BSP, 6mm female thread lenght
- Outer diameter of a knurled part: 18,8mm
- Installed height: 36,5mm
- Sealed with high quality NBR oring.
ROHS compliant!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
- All AF Angled adapters are hand polished and rounded, therefore minor geometrical imperfections are to be expected. This fact does not fall under warranty terms and RMA rights!
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Additional Info
Threads | G1/4 |
---|
