Details

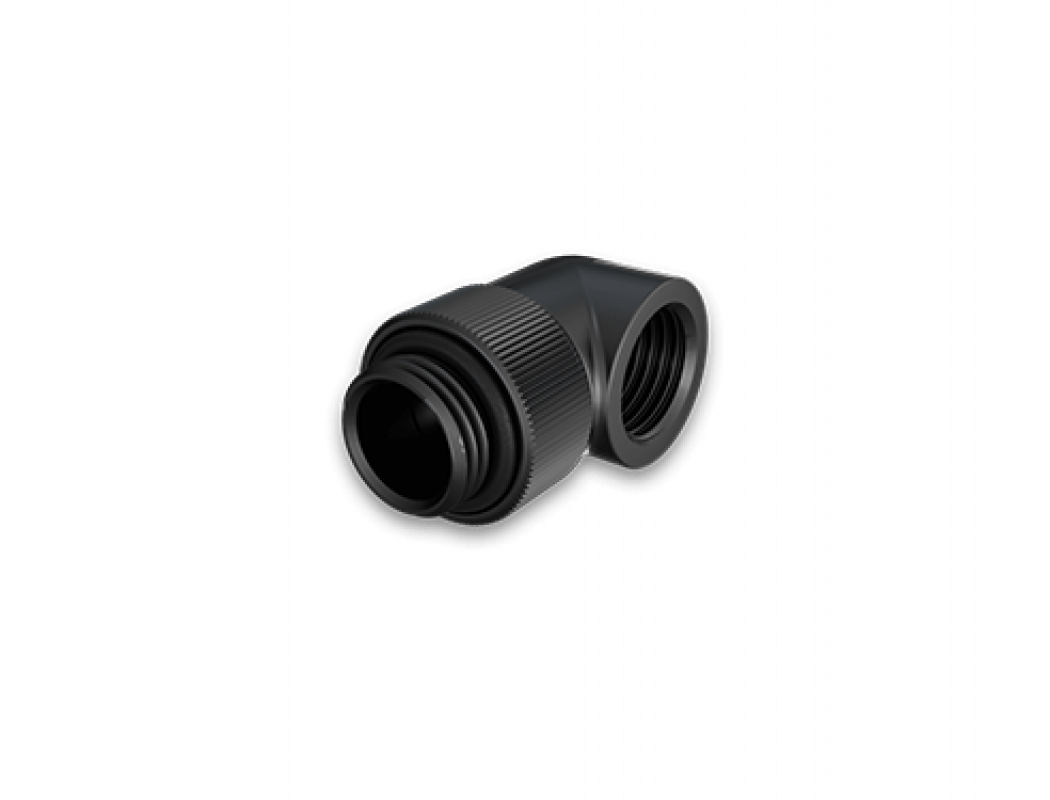

EK-AF ALU Angled 90° G1/4 is a revolvable angled (90°) adapter fitting with G1/4" threads. Adding adapters like these to your liquid cooled build makes tube routing much easier and more elegant at the same time. These rotary adapter fittings can rotate – they have the base that gets screwed into G1/4“ port, and the top of the fitting can rotate 360°, full circle.
Technical specifications:
- Material: black PTFE coated aluminum
- Threads:
* G1/4" BSP; 4,5mm male thread length
* G1/4" BSP, 6mm female thread length - Outer diameter of a knurled part: 19,8mm
- Installed height: 28mm
- Sealed with high-quality NBR o-ring
PLEASE NOTE:
- Compatible only with EK Fluid Gaming series products!
- Do not mix EK Fluid Gaming series fitting with brass, copper any other type of metal based parts in your liquid cooling loop!
- Do not use any tools to secure the adapter fitting into the G1/4" socket.
Additional Info
Threads | G1/4 |
---|
