EK-XRES 140 Revo D5 - Plexi (stand-alone)

This product is no longer available.

The EK-Quantum Kinetic TBE series replaces our successful Xres Revo line.

EK-XRES 140 Revo D5 - Plexi (stand-alone)

Produkt-EAN: 3830046995438

Is my PC compatible?

End of life

Finanzierung möglich

Teilen Sie den Kaufbetrag von 500 EUR/AUD/USD oder mehr mit Splitit in bis zu 3 zinslose monatliche Zahlungen auf.

Details

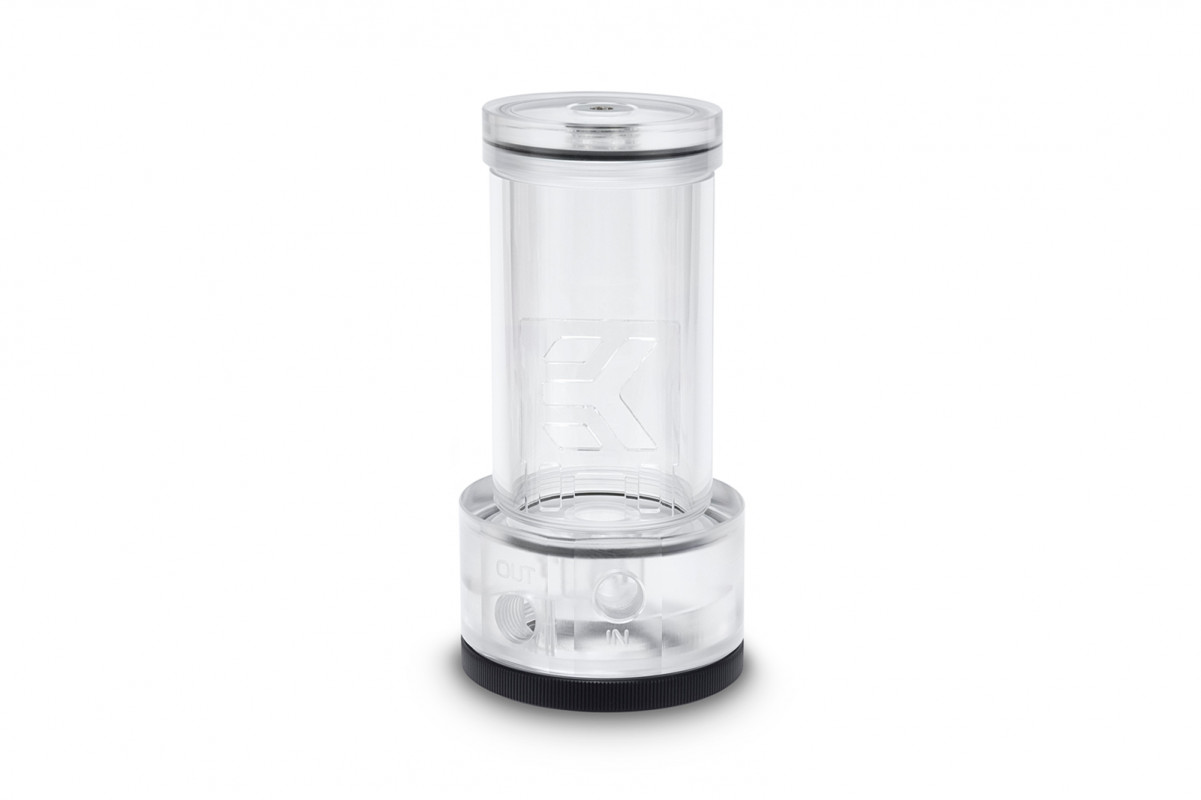

EK-XRES 140 Revo D5 - Plexi is a high-performance stand-alone pump top (volute) for Xylem D5 series water pumps with an integrated reservoir. This top offers increased hydraulic performance (up to 15%) compared to factory top. This stand-alone pump top kit does not include a pump!

EK-XRES 140 Revo D5 - Plexi features a fully rounded see-through acrylic design thus offering stunning looks and greater usability. This allows installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning is supported for easier tube routing possibilities. EK-XRES 140 Revo D5 - Plexi series reservoirs come preinstalled with anti-cyclone insert. Optional PU anti-vortex foam and EK-HD Tube is enclosed for additional options.

Anti vortex options

This water pump/reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.

The 60mm diameter tube is made of a high-quality acrylic material, while the reservoir bottom/pump top is CNC machined acrylic glass.

Once the D5 pump is installed, the EK-XRES 140 Revo D5 - Plexi (stand-alone) can also be upgraded with either:

EK-UNI Pump Bracket (120mm fan) Vertical - For horizontal or vertical installation on any position with 120mm type fan hole pattern
EK-UNI Pump Bracket (140mm fan) Vertical - For horizontal or vertical installation on any position with 140mm type fan hole pattern
EK-UNI Pump Bracket (120mm fan) - For installation with only one orientation on any position with 120mm type fan hole pattern
EK-UNI Pump Bracket (140mm fan) - For installation with only one orientation on any position with 140mm type fan hole pattern

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~ 205mL
- Overall unit height: 190mm
- Mounting hole pattern: 65x34mm

Enclosed:
- EK-XRES 140 Revo D5 - Plexi (stand-alone)
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Anti-vortex PU foam and 12mm OD plexiglass tube
- Mounting mechanism (incl. required Allen keys)
- Installation manual

Made in Slovenia - EU!
Pump motor made in Hungary - EU!

ZU BEACHTEN:

The D5 pump is not included!
Compatible with any D5 pump motor.
The EK-UNI Pump Bracket bracket is just for showcase and it is not included with the unit.
Do not clean acrylic tube with alcohol derivates or other solvents as the acrylic may crack!
Do not use excessive force while fastening the fittings to the combo unit body as it might crack!
This product should NOT be installed with any aluminum Fluid Gaming parts!

Zusatzinformation

Threads	G1/4
