Details
EK-QuantumX Delta TEC EVO E2 is an evolution of the 2nd generation of cryo-cooling water block that is made in collaboration with Intel®. It is a unique cooling solution for enthusiasts who are seeking consistent system performance and ultimate overclocking on unlocked 11th and 10th Gen Intel® Core™ desktop processors. The 2nd generation brought in improvements to the design over the original, most notably an even more powerful TEC plate allowing over 50W more of cooling power. The TEC plate is soldered to the bottom of the water block that goes over the CPU, improving contact and transfer of cooling to the block and eventually the CPU.
The Delta TEC EVO E2 specifically upgrades electronics of the 2nd generation of Delta TEC, allowing for pump and fan control.
Supported CPUs:
- Intel® Core™ i5-10600K Processor (12M Cache, up to 4.80 GHz)
- Intel® Core™ i5-10600KF Processor (12M Cache, up to 4.80 GHz)
- Intel® Core™ i5-11600K Processor (12M Cache, up to 4.90 GHz)
- Intel® Core™ i5-11600KF Processor (12M Cache, up to 4.90 GHz)
- Intel® Core™ i7-10700K Processor (16M Cache, up to 5.10 GHz)
- Intel® Core™ i7-10700KF Processor (16M Cache, up to 5.10 GHz)
- Intel® Core™ i7-11700K Processor (16M Cache, up to 5.00 GHz)
- Intel® Core™ i7-11700KF Processor (16M Cache, up to 5.00 GHz)
- Intel® Core™ i9-10850K Processor (20M Cache, up to 5.20 GHz)
- Intel® Core™ i9-10900K Processor (20M Cache, up to 5.30 GHz)
- Intel® Core™ i9-10900KF Processor (20M Cache, up to 5.30 GHz)
- Intel® Core™ i9-11900K Processor (16M Cache, up to 5.30 GHz)
- Intel® Core™ i9-11900KF Processor (16M Cache, up to 5.30 GHz)
Available in limited quantity!

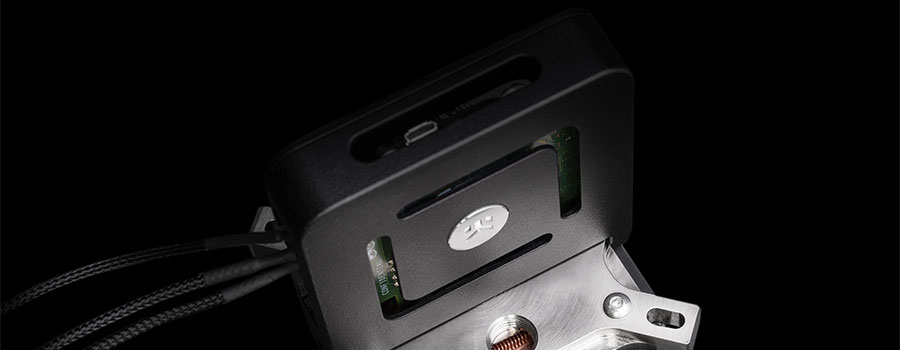

EK-QuantumX Delta TEC EVO E2 CPU water block has a built-in Peltier/Thermoelectric cooler plate. It is powered by Intel® Cryo Cooling Technology, a unique combination of hardware, software, and firmware designed to help unleash elite performance for gamers and overclockers.
Quantum Xtreme
Delta TEC water blocks are like no other. Hence, they bear the flag of special products that are ought to push the limits – the QuantumX. The water block itself features a robust all-metal design for extreme conditions with an insulation shroud that isolates the water block cold plate from the environment, impeding condensation. The cold plate is CNC-machined out of high-purity electrolytic copper, which enables high thermal performance. A large surface area, covered with 51 cooling fins, transfers the heat away from the powerful, purpose-made TEC plate.
Built upon a purpose-designed large surface flow-through cooling engine together with Intel Cryo Cooling Technology, bridging aesthetic uniformity and near-silent operations with technological advancements in thermal solutions, the EK-QuantumX Delta TEC EVO E2 is an exceptional application of cooling the CPU with sub-ambient temperatures by utilizing a Thermoelectric Cooler (TEC) plate while continuously monitoring and adjusting temperatures dynamically, achieving an ideal operating environment for sustained gaming performance.
How does this EK-QuantumX Delta TEC EVO E2 water block work?
Liquid coolers are unable to reach temperatures below ambient (room) temperature, but the EK-QuantumX Delta TEC EVO E2 is cutting-edge, as it actively cools the CPU to sub-ambient temperatures while extracting and dissipating the heat generated from the TEC plate through the traditional liquid cooling loop. While the TEC plate cools the CPU, the TEC plate itself is cooled entirely by your custom liquid loop.
Doesn't sub-ambient cooling cause condensation?
The EK-QuantumX Delta TEC series products utilize an innovative two-pronged approach to mitigate thermal condensation, a byproduct that has plagued previous attempts of sub-ambient cooling. The cooler features a compact integrated insulation shroud that isolates all exposed cold surfaces from the environmental conditions inside the PC, while the Intel Cryo Cooling Technology continuously monitors and adapts to those conditions to minimize condensation risk generated by the cooling process.
Software
The Intel Cryo Cooling Technology software download link can be found HERE.
Product Guide
All necessary information on the EK-QuantumX Delta TEC series coolers can be found HERE.
Warning:
![]() |
|
Technical Specifications:
- Power connector: 8-pin PCI-E
- Connection with PC: internal USB 2.0
CPU socket compatibility:
- Intel LGA1200
For motherboard and CPU compatibility please consult "Is my PC compatible" below.
Enclosed:
- EK-Quantum Delta TEC EVO E2 water block
- EK-QuantumX Delta TEC EVO E2 controller
- M4 PVC Washers (4 pcs)
- Screw (4 pcs)
- Coiled Spring (4 pcs)
- Backplate (1 pcs)
- Sticker (1 pcs)
- Thumb Nut (4 pcs)
- Thermal Paste(1 pcs)
- EK-Cable 5-Pin Motherboard (F) to Micro-USB (M) 50cm (1pcs)
Made in Slovenia - Europe!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolant section.
- This product should NOT be installed with any aluminum EK Fluid Gaming parts!
- The latest BIOS update is required to be able to run the product successfully.
- The water block is compatible only with LGA 1200 Z590 and Z490 Socket based motherboards.
- Chek the compatibility list before purchasing the product.
- Intel TEC software supports only Windows 10.
- It does not support LGA 1700 socket.
Additional Info
Threads | G1/4 |
---|---|
Sockets | Intel |
Decided to buy this product?
$479.99
$192.00 -60 %
Out of stock
