-10 % EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal

EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal

Product EAN: 3831109836323

Na zalogi

152,99 $

137,69 $ -10 %

Estimated Delivery Date: 10 December 2021
?
  • DHL Economy tracking: 13 December 2021
  • DHL Express with tracking: 10 December 2021
  • UPS with tracking: 10 December 2021

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Podrobnosti

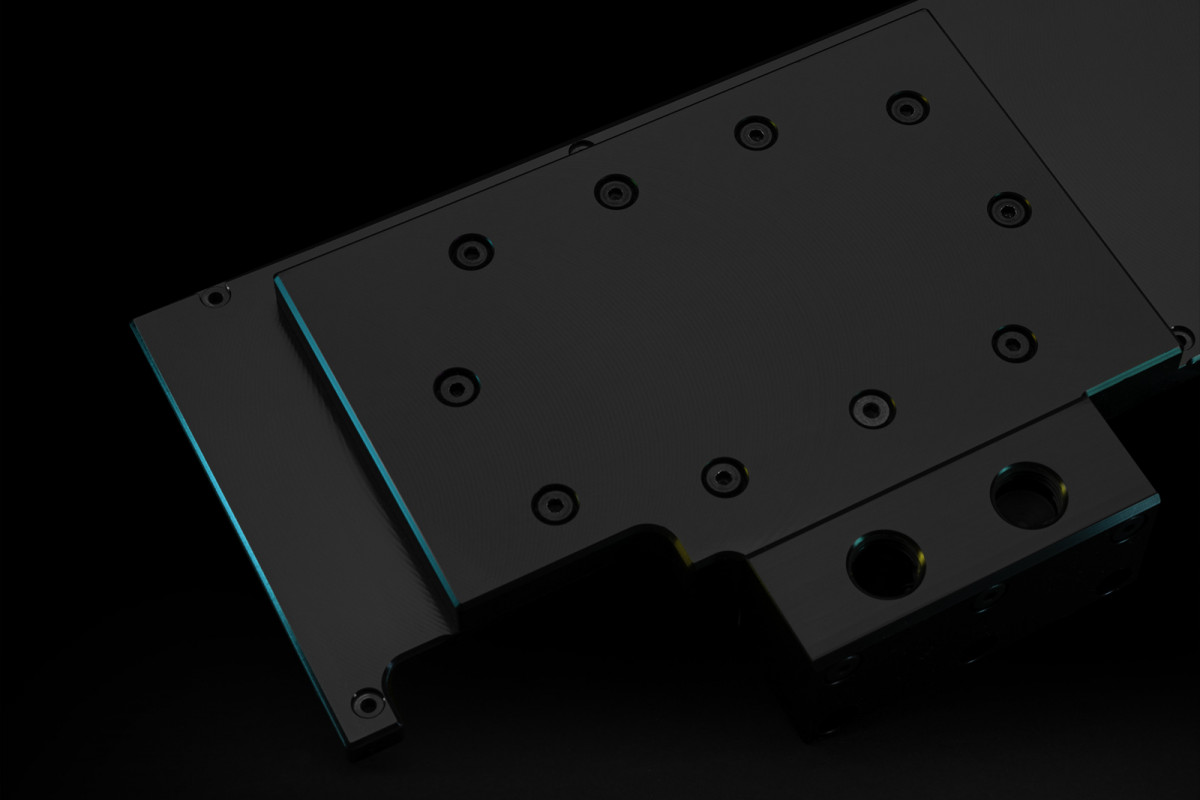

EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector Trinity RTX 3080/3090 water blocks and actively cool the backside of all ZOTAC® GeForce RTX™ 3080 and 3090 Trinity GPU.

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

EK Trinity RTX 3080 3090 active backplate

EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate

EK-Quantum Vector Trinity RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block. This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling.

EK Trinity RTX 3080 3090 active backplate

The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.

These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer.

EK Trinity RTX 3080 3090 active backplate

The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid. These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.

Warning:

  • EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance and block contacts are tested exclusively with EK-brand thermal pads.
  • Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package.
  • EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.

Enclosed:

- EK-Quantum Vector Trinity RTX 3080/3090 Active Backplate - Acetal
- Necessary mounting screws, nuts, and washers
- 1x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads

Technical Specification:

- Dimensions: (LxHxW) - 233x124x15mm

Made in Slovenia - Europe!

PLEASE NOTE:

  • This block is made for ZOTAC Trinity 3080 and 3090 cards. It is not a stand-alone unit and requires an EK-Quantum Vector Trinity RTX 3080/3090 water block to pair with.
  • Due to the immense variety of fittings/barbs available on the market, we guarantee compatibility only with EK fittings.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.

Dodatne informacije

Opcija Nickel Acetal
Threads G1/4
Chip Manufacturer Nvidia GeForce
