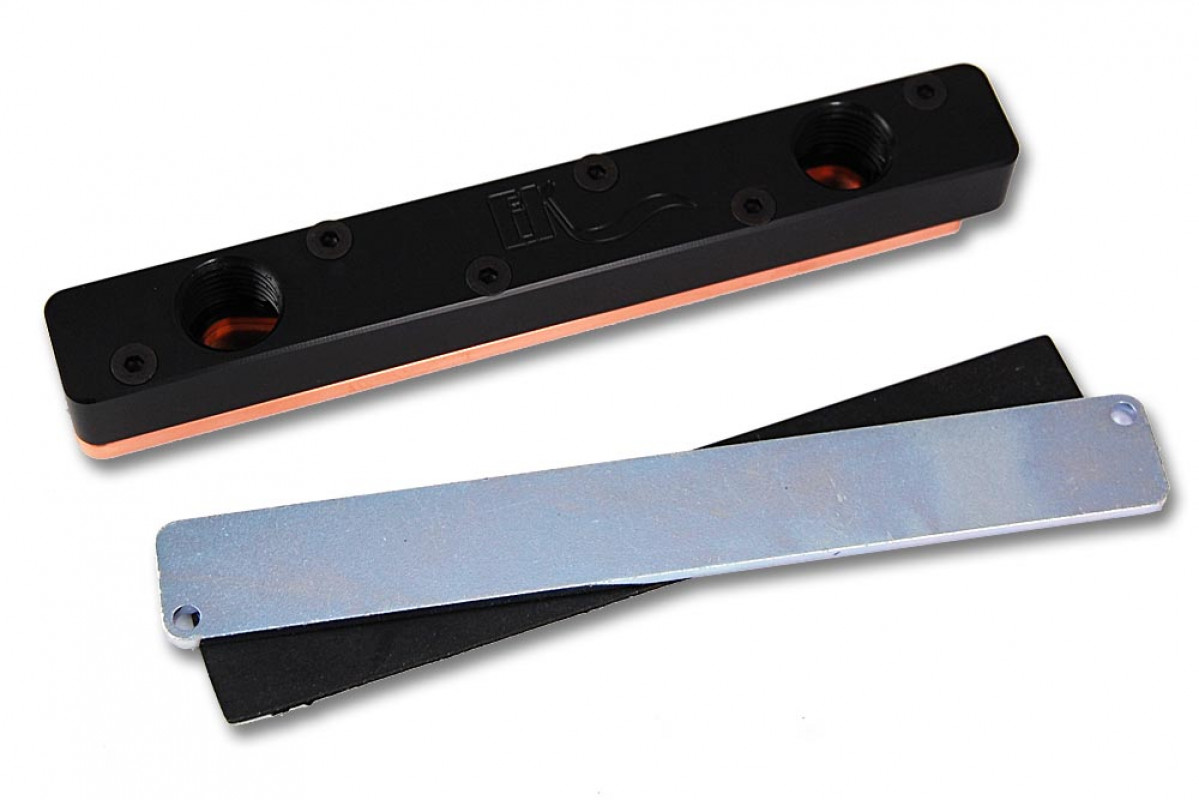

EK-MOSFET ASUS M4N - Acetal

Special Mosfet water block made for special ASUS motherboards.

Water block was designed for hard enthusiast users to get the most out of motherboards when overclocking the CPU.
The crucial part for overclocking are power reguator chips (VRC/mosfets), that are the source for extreme overclocking. Therefore EK developed full copper base to suppy maximal cooling for all chips that needs to be cooled.
Top is made of quality POM Acetal. The sealing is preformed by quality rubber washer (o-ring). Block is mounted with enclosed M3x8mm screws.

ENCLOSED:
- Mounting screws with PVC washer
- 2mm zinc-plated backplate with 1mm rubber washer

Technical data:
- dimensions of copper base: 118,5 x 15 x 3,5mm
- dimensions of POM Acetal top: 119,5 x 16 x 12mm
- threads: 2 x G1/4
- fittings size: optional
- weight: 120 g

Supported motherboards:
- Asus M4A78T-E (AM3)
- Asus M4A78-E (AM3)
- Asus M4A79T Deluxe (AM3)
- Asus M4A79 Deluxe (AM3)
- Asus M4A78 PRO (AM3)

Click here for installation manuals
