EK-FB KIT ASUS R5-E10 - Nickel

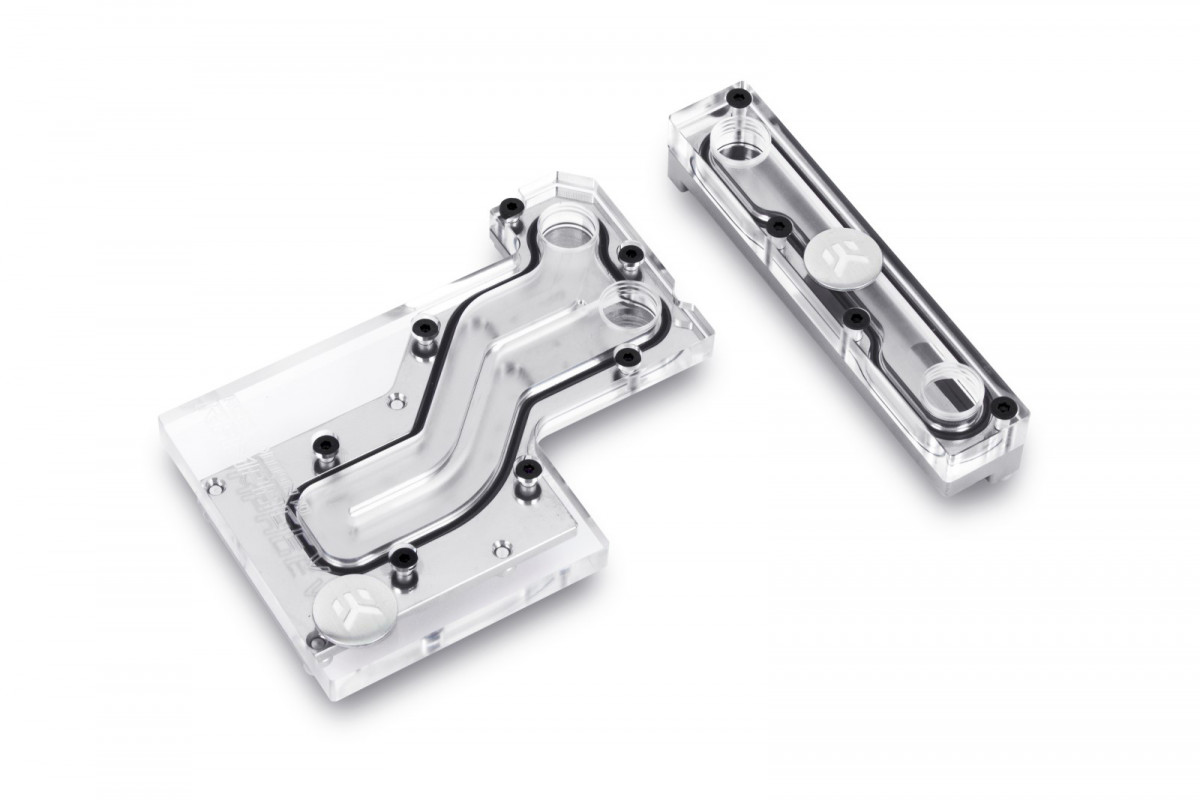

EK-FB KIT ASUS R5E-E10 is a complete liquid cooling solution for ASUS ROG Rampage V Edition 10 motherboard consisting of two separate water blocks. The water blocks directly cool Intel X99 Express southbridge (PCH) chip and power regulation (VRM / MOSFETs) module. Please note this water block cools exactly as much heat generating components as ASUS factory cooling solution. Both blocks utilize a very high flow design, allowing you to use it in loops with weaker water pumps.

The base of both water blocks is made of nickel plated electrolytic copper while the top is made of quality acrylic material. The sealing is performed by quality rubber gaskets. Nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation.

A maximum diameter of barbs/fittings on SB part of the water block kit must be 22.2mm (EK-ACF Fitting 10/16mm are the largest fittings that you can use) in order to allow the installation of the graphics card mounted with EK-FC series backplate in the first PCIe x16 slot!

Enclosed:
- 2 water blocks (MOSFET & SB)
- Mounting mechanism
- Thermal pads
- Thermal grease EK-TIM Ectotherm

Made in Slovenia - Europe!
