EK-FB GA 990FXA-UD7 - EN (Nickel)

Product EAN: 3831109820674
End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made in the EU

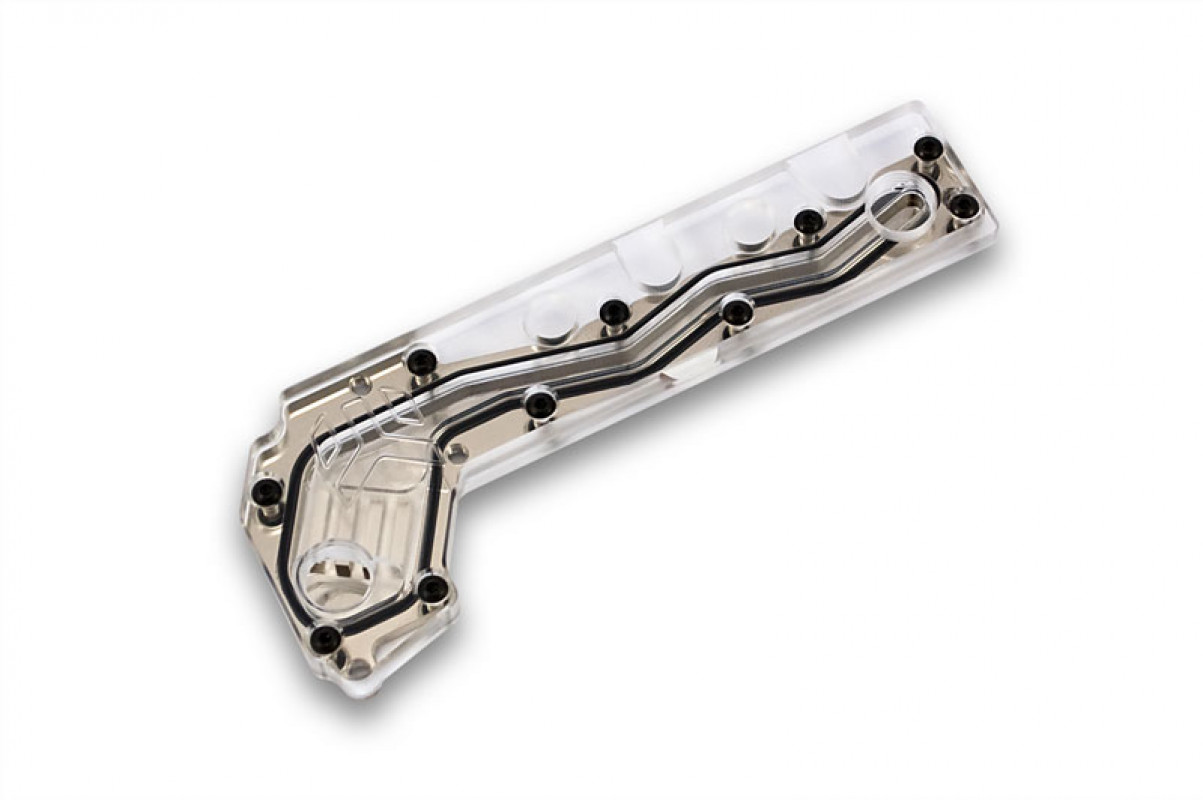

EK-FB GA 990FXA-UD7 is a water cooling solution for Gigabyte GA-990FXA-UD7 motherboard. This waterblock directly cools AMD 990FX northbridge chip and power regulation (VRM / MOSFETs) module while the SB950 southbridge is cooled by enclosed heatsink. It provides high flow water block design that can be easily used with systems using weaker water pumps.

Base of the waterblock is made of electroless nickel plated (EN) electrolytic copper while the top is made of quality cast acrylic material. The sealing is performed by quality rubber gaskets. Southbridge heatsink is made of black anodized aluminum.

Water block as well as southbridge heatsink are mounted with enclosed M2.5x4 DIN7985 screws and PVC washers. The enclosed 2.1mm nickel plated brass screw-in standoffs allow easy installation.

Enclosed thermal pad is used on voltage regulator module to improve cooling performance of the waterblock. On the northbridge and southbridge chips please use any electrically non-conductive thermal grease, e.g. Arctic Cooling MX-4.

Technical data:
- threads: 2 x G1/4 threads
- fittings: optional, not enclosed
- total weight: 180g

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
