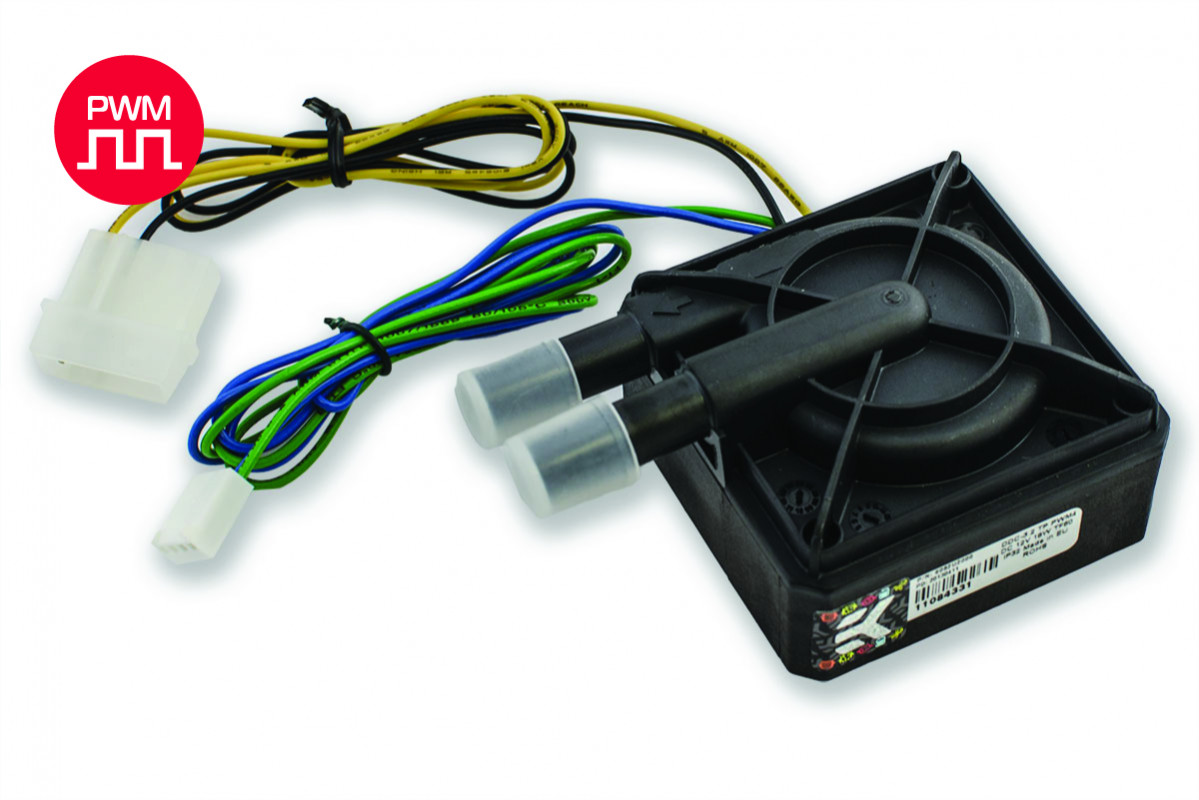

EK-DDC 3.2 PWM (12V PWM pump)

Laing DDC-3.2 PWM (Xylem DDC-3.25TPPWM4) high-performance water pump with power management control (via PWM - pulse width modulation) of rotation speed trough motherboard BIOS or dedicated fan controller.

This pump features 3/8" (10mm) non-removable plastic barbs to support any 10mm ID tubing and is compatible with any EK-DDC X-TOP pump top and X-RES series pump reservoir combo unit.

Despite a remarkably small footprint of 2.4" square, the pump features an astounding 5,2m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).

It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.

Technical Specifications:
- Dimensions (W x D x H): 90 x 62 x 38 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 °C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector:  4-Pin Molex- and 4-Pin PWM FAN connector

Pump made in Hungary - EU!
