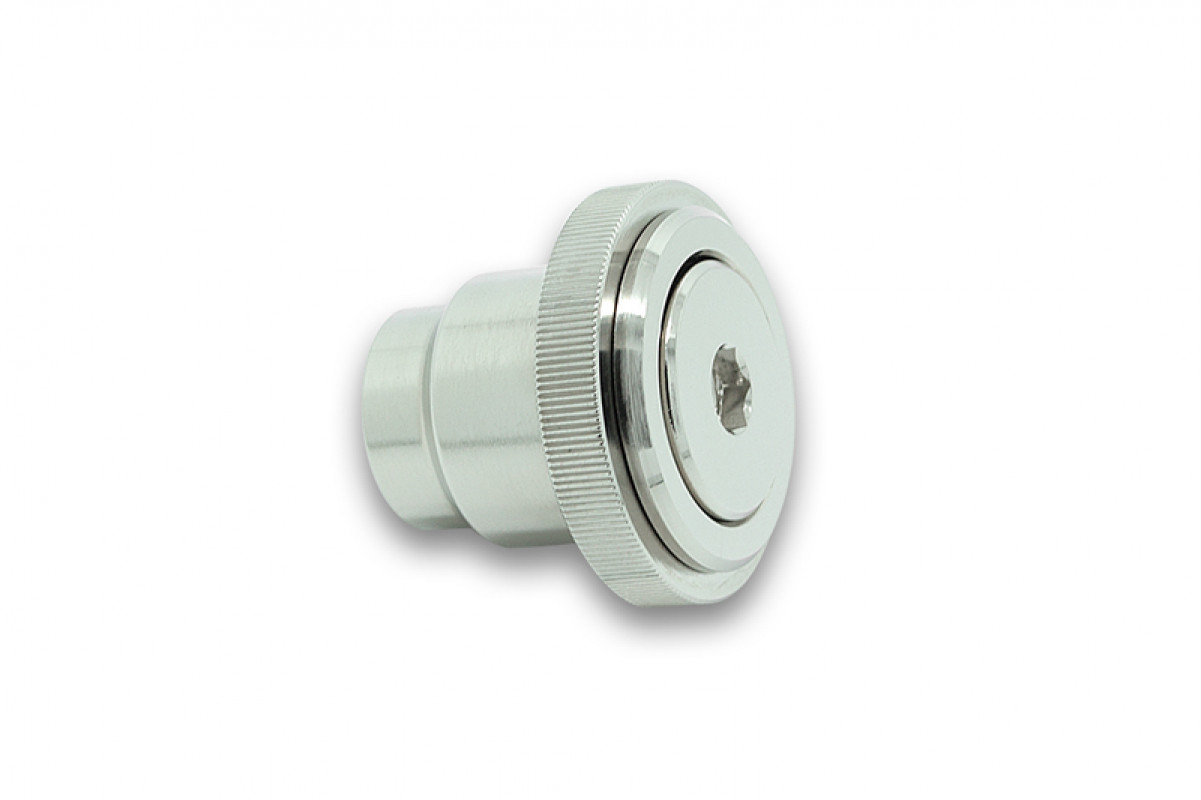

EK-AF FillPort G1/4 - Nickel

EK-AF FillPort is a panel mounted adapter, primarily designed as an extension to reservoir to function as a service port. This adapter fitting allows easier topping-off and can alternatively also serve as a drain-port.

This adapter is equipped with one standard female G1/4" port and is closed-off by enclosed G3/8" Plug, required Allen Key is also enclosed.

Made from nickel-plated CNC machined brass.

Technical data:
Threading: 1 x G1/4"
Plug: 1 x G3/8"
Thread length: 7.0mm
Diameter: 33.0mm
Height: 27.0mm

ROHS 2.0 compliant!
