Details

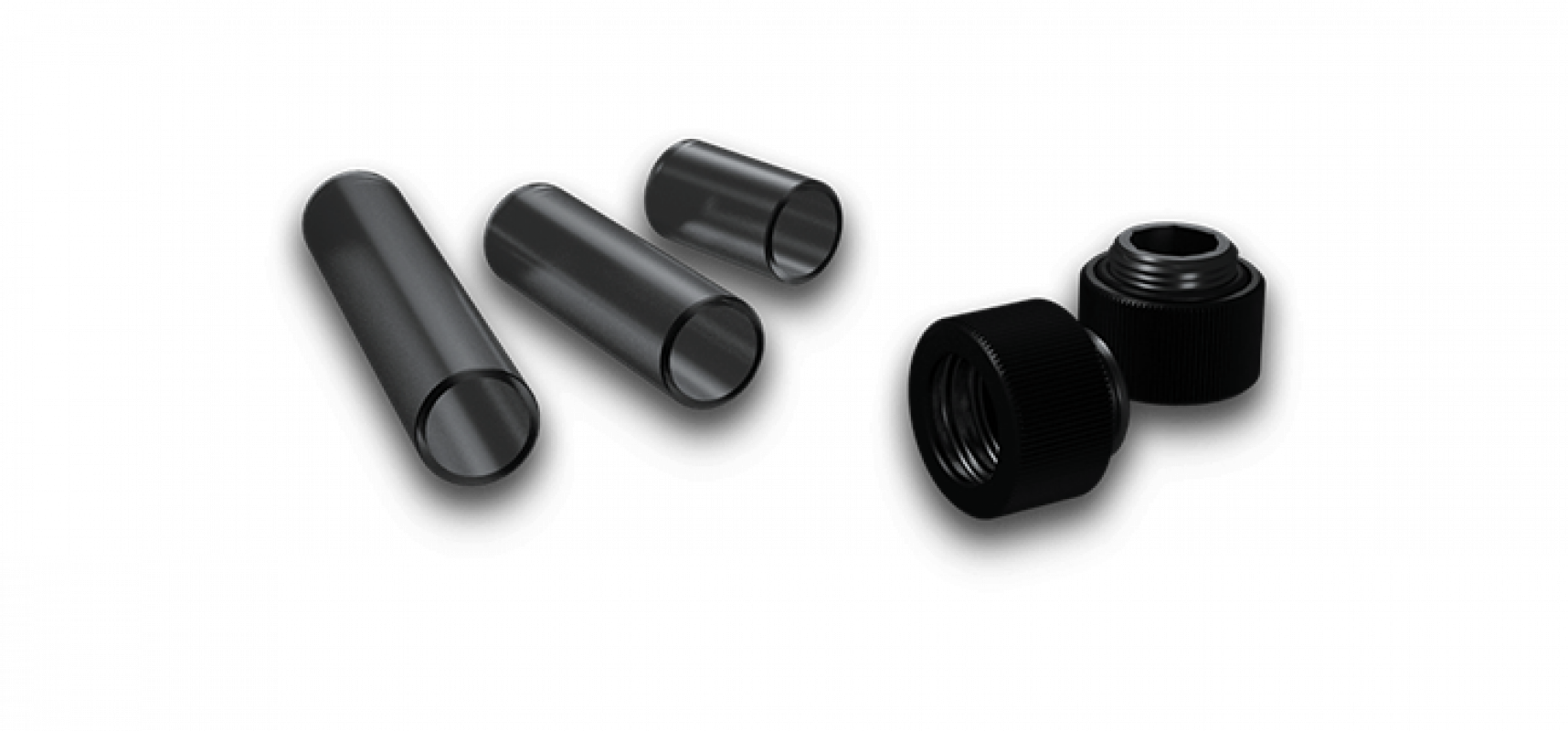

This Connector kit is used for multiple EK Fluid Gaming GPU water block connectivity. The EK-AC Multi-GPU Connector Kit consists of two aluminum HD Adapter fittings and three different sized pre-cut solid Acrylic tubes. The three pre-cut solid Acrylic tubes allow the following connection types:
- 20,7mm long tube is intended for 2-Slot type PCI-Express connection that is 40.6mm apart
- 41,0mm long tube is intended for 3-Slot type PCI-Express connection that is 60.9mm apart
- 61,3mm long tube is intended for 4-Slot type PCI-Express connection that is 81,3mm apart
EK-AC Multi-GPU Connector Kit scope of delivery:
- Aluminum HD Adapter fitting 12mm OD (2pcs)
- 20,7mm EK-HD Tube 10/12mm 2-Slot - Acrylic
- 41,0mm EK-HD Tube 10/12mm 3-Slot - Acrylic
- 61,3mm EK-HD Tube 10/12mm 4-Slot - Acrylic
Aluminium HD Adapter fitting specifications:
- thread: G1/4" BSP; 4.5mm male thread length
- supported tube: 12mm (OD)
- outer diameter of a fitting: 18.7mm
- installed height: 11mm
EK-HD Tube specifications:
- Inner diameter: 10 mm
- Outer diameter: 12 mm
- Lengths: 20,7mm, 41,0mm and 61,3mm
PLEASE NOTE:
- The package contains only the fittings and tubes, GPU water block is sold separately.
- For easier installation, we recommend wetting the gasket (o-ring) using drops of water prior to installing the solid tube.
